NEW

Introducing
The Protector

The handheld, intrinsically safe and IP67-rated carbon monoxide detector designed to provide precise and reliable monitoring of carbon monoxide levels in many industries.

Protector front view

NEW

Introducing The Protector

The handheld, intrinsically safe and IP67-rated carbon monoxide detector designed to provide precise and reliable monitoring of carbon monoxide levels in many industries.

Protector 3/4 view

Rugged. Ergonomic.
Intrinsically Safe.

The Protector utilizes advanced electrochemical sensor technology to detect carbon monoxide gas in the environment. Its rugged and ergonomic design, intrinsic safety, and IP67 rating make it suitable for on-site applications in oil refineries, gas pipelines, and other facilities.

It can be used as a standalone device to display CO parts per million (ppm) values and log shift, alarm, bump, and calibration data. The Protector handheld gas detector has built-in memory for storing 1109 alarms, 359 bump tests, 19 calibrations, and 359 shifts. Each log is saved in the handheld detector until it is full, and then they will start to be overwritten starting at the beginning.

Cloud Software
& Phone App

The Protector also features seamless cloud data storage and connectivity, enabled through built-in Bluetooth Low Energy (BLE) technology. Two options are provided to connect and send data to the Protector Fleet Manager cloud software. An app called Protector Mobile Connect allows quick and efficient data synchronization and provides basic functions to initiate bumps, calibrations, and firmware updates. Optionally, a small footprint dock is available to facilitate data synchronization, bumps, calibrations, and firmware updates through an insertion pocket that the Protector slides into.

Protector with phone and laptop software
Phone and laptop software view

Sort, View and Download Data with Protector Fleet Manager

Cloud storage and data analysis are available with Protector Fleet Manger cloud software, visible from the internet or mobile devices. Fleet management compliance reports and specific data related to all devices in the protector system can be viewed. Data can be sorted, viewed, and downloaded in a way suitable to each customer with dynamic tables. Adjustable parameters for the Protector are synchronized between the handheld and Facility app, allowing setting from the menu or from the cloud.


Lower Cost of Ownership

Designed from the ground up to minimize the high costs associated with portable gas detection management.

Save up to 90% on test gas over other systems and tens of thousands of dollars per year with the FastBump mode.

Maintenance time is reduced by hundreds of hours with a battery that lasts up to 5 years.

Quickly bump test in under 5 seconds making your workforce more productive by hundreds of hours each year.

Quickly configure fleets
of equipment via BLE
saving hundreds of hours


Protector Features

High-Contrast
Display and Controls

The device features a high-contrast LCD screen that displays real-time CO concentrations and other essential information. Battery status, current time, STEL, and shift TWA are also displayed along with the gas concentration in the main screen. The main screen also displays special alarm identifiers around the gas type during an alarm condition. The display has a backlight that illuminates on a button press.

Audible and
Visual Alarms

The Protector includes four different alarms, which are combinations of sounds, vibrations, display changes, and lights to warn the user of various levels of gas detection. Alarm sequences increase intensity with increased exposure risk.

Advanced Electrochemical Sensor Element

The Protector has an advanced electrochemical sensor that provides reliable and stable CO gas readings. Electrochemical sensor elements are designed to have a linear output response over the operating range. Very small and very large levels of gas can be detected and accurately processed with a microcontroller. Once digitized, the signal can provide warnings of various exposure limits.

The sensor module can be easily replaced by the user when needed.

Over the Air (OTA) Firmware Upgrades

The device features convenient over-the-air (OTA) firmware updates through Bluetooth communication to the Protector Mobile Connect app or a dock. Notifications of available firmware upgrades occur on the mobile app and on the Protector Fleet Manager cloud software.

Calibration

The Protector can be calibrated in the field in different ways. The device has a menu system that can be used to initiate a calibration with the use of a calibration cup that snaps onto the housing. A phone app can also make use of the calibration cup and initiate the process from the app. A third way to perform calibrations is with a dock that can be used to calibrate PRO-CO-1000 devices.

Calibrating Protectors is recommended at an interval of 30 days to maintain the accuracy of aging sensors.

Bump Testing

The gas detector features a bump function that allows users to initiate and monitor bump tests directly from the companion mobile app.

Protector Operating Manual

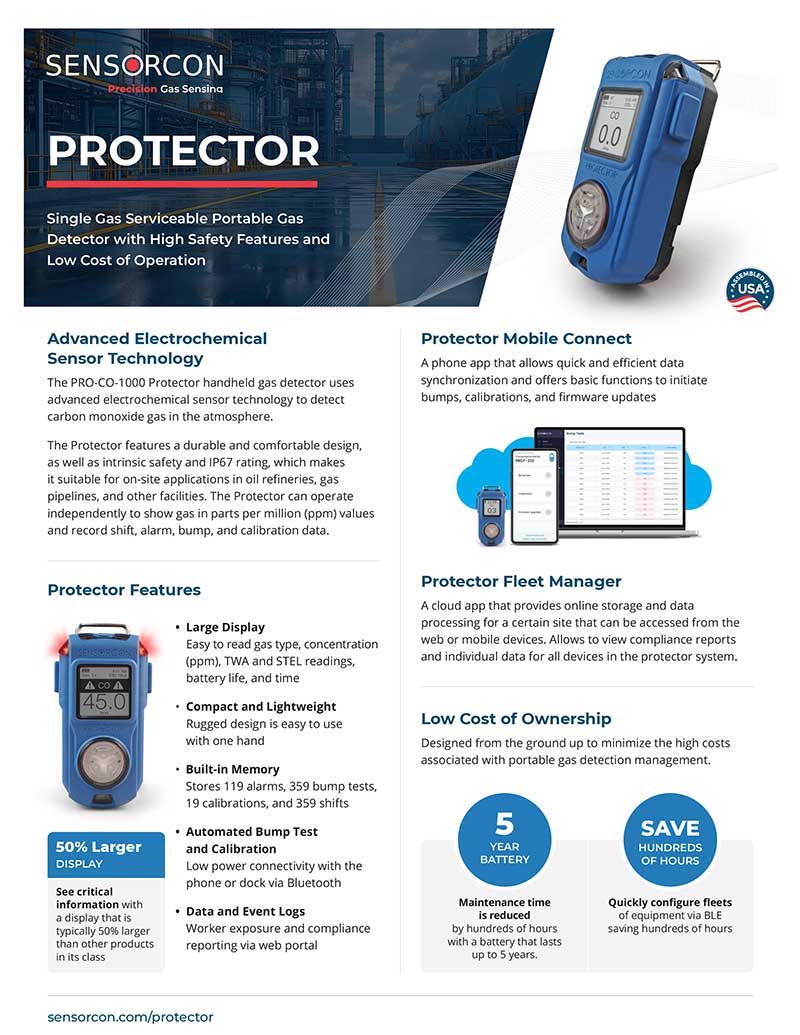

Protector Spec Sheet

Technical Specifications

Product Model PRO-CO-1000
Manufacturer Sensorcon
PRO-CO-1000 Measurement Range (ppm) 0 to 1000
Accuracy (%) 32 to 122 °F (0 to 50 °C) Range Typically, +/- 5%
Accuracy (%) -4 to 32 °F (-20 to 0 °C) Range Typically, +/- 10%
Resolution (ppm) 1.0
Typical Response Time (sec) (T90): < 13 seconds
Operating Temperature Range -22 to 122 °F (-30 to 50 °C)
Extended Intermittent Temperature Range -40 to 140 °F (-40 to 60 °C)
Calibration Temperature Ambient, 68 to 75 °F (20 to 24 °C)
Humidity Range (%RH) 15 to 90, non-condensing
Pressure Range 800 to 1200 mbar
Battery Life (yrs) (8hr shift, no alarms, 1 data upload)/day 5 years
Shelf Life Before Use 1 year
Warranty (yrs) 2 years
Hazardous Locations Certifications
(US & Canada)
Intrinsically safe,
CLASS I, GROUP A,B,C,D;
CLASS II, GROUP E,F,G;
CLASS III, T4
ZONE 0, AEx ia IIC T4 Ga;
Ex ia IIC T4 Ga -40°C ≤ Ta ≤60°C
Communication IDs FCC ID: 2BCPVPROT
IC: 30855-PROT
Ingress Protection IP67 (1 meter for 30 min)
Weight 4.5 oz./128 g (device with battery and clip)
Dimensions (L x W x H) 3.50 x 2.00 x 1.75 inches/89 x 51 x 44.5 mm
Volume of audible alarm 95 dBA @ 10 cm
Display 128 x 128 Graphic LCD with backlight
Battery Type Primary lithium, Tadiran TL-5935
Alarms (4 adjustable thresholds) Flashing alarm LEDs, an audible alarm, and
a vibrating alarm, programmable latches
Sensor Type Electrochemical

Please note: Due to ongoing research and product improvement, specifications are subject to change without notice.
